Firebase Cloud Messaging: Complete Guide for Node.js and Mobile

Why Firebase Cloud Messaging (FCM) is the Best Choice

• Free and Scalable
  You can send millions of notifications without worrying about cost — FCM is completely free and handles large volumes easily.

• Works on All Platforms
  Whether it’s Android, iOS, or Web — FCM supports all major platforms with just one integration.

• Reliable Delivery
  Since it runs on Google’s powerful infrastructure, your messages are delivered quickly and consistently, even at scale.

• Send More Than Just Notifications
  FCM allows you to send rich messages — not just titles and bodies, but also custom data (like IDs, URLs, Images) that your app can use to take actions.

• Smart Targeting
  You can choose exactly who should receive the message — by device, user group, app version, or custom topics.

• Built-in Analytics and Tracking
  FCM comes with delivery reports and integrates with Firebase Analytics, so you know how your messages are performing.

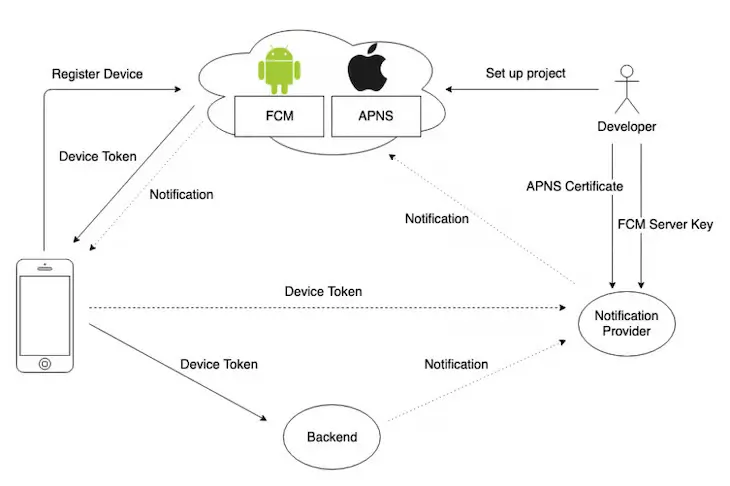

FCM Architecture Overview

• Device Registration:
  The mobile device registers with FCM (Android) or APNS (iOS) to obtain a Device Token used for uniquely identifying the app instance.

• Developer Setup:
  The developer configures the Firebase project and uploads APNS certificates (for iOS) or uses FCM Server Key (for Android) to authorize message sending.

• Token Sharing:
  The app sends the obtained Device Token to the Backend Server or Notification Provider, enabling them to send targeted messages.

• Sending Notifications:
  The Backend or Notification Provider sends messages to FCM/APNS, which then delivers them to the appropriate devices using the token.

FCM Message Payload Structure

FCM supports two types of messages:

• Notification Messages (Handled automatically by OS if app is in background).

• Data Messages (Requires app-side handling, useful for in-app updates).

Sample JSON Payload:

  {
  "message": {
    "token": "DEVICE_FCM_TOKEN", // FCM token of the target device
    "notification": {
      "title": "New Message!",   // Title shown in the notification
      "body": "You have a new notification." //Body text shown in the notification
    },
    "data": {
      "action": "chat", // Custom key: Used to define app behavior (e.g., open chat screen)
      "userId": "123"     // Custom key: Can be used to identify a specific user or context
    }
  }
}

Setting Up FCM in Android and iOS

Android Setup:

1. Add Firebase to Android Project

• Go to Firebase Console.
• Add your Android app (com.example.app) and download google-services.json.
• Place it in app/ directory.

2. Add Dependencies (app/build.gradle)

implementation 'com.google.firebase:firebase-messaging:23.0.0'

3.  Create a Service to Handle Messages

class MyFirebaseMessagingService : FirebaseMessagingService() {
    override fun onMessageReceived(message: RemoteMessage) {
        // Handle notification/data payload here
        Log.d("FCM", "Message: ${message.notification?.title}")
    }
}

iOS Setup:

1. Add Firebase to iOS Project

• Register your iOS app in Firebase Console.

• Download GoogleService-Info.plist and add it to Xcode.

2. Install Firebase SDK

3. Configure AppDelegate for FCM

Sending FCM Message from NodeJs

1. Setup Firebase Project & Download Admin SDK

• Go to Firebase Console

• Create a new project (or use an existing one)

• Navigate to: Project Settings → Service accounts

• Click Generate new private key

• Save the JSON file (this contains your Firebase credentials)

• Install Firebase Admin SDK

• npm install firebase-admin

2. Initialize Firebase Admin

const admin = require("firebase-admin");

const serviceAccount = require("./service-account-key.json");

admin.initializeApp({
  credential: admin.credential.cert(serviceAccount),
});

// Send a notification
const sendFCM = async (token, title, body, data = {}) => {
  const message = {
    token,
    notification: { title, body },
    data,
  };

  try {
    await admin.messaging().send(message);
    console.log("Message sent successfully!");
  } catch (err) {
    console.error("FCM Error:", err);
  }
};

// Example usage
sendFCM(
  "DEVICE_TOKEN",
  "Hello from Node.js!",
  "This is a test FCM message.",
  { action: "test" }
);

Testing and Sending Notifications

You can test by calling your Node.js API with a valid device token. Use Postman to send a POST request to your backend with parameters like:

{
"token": "DEVICE_FCM_TOKEN",
"title": "Hello",
"body": "This is a test message."
}

Common Issues and Fixes

• Make sure the device token is correct.
• Always handle errors (e.g., invalid tokens, network issues)
• Ensure Firebase is properly initialized in both frontend and backend.
• For iOS, ensure APNs certificates are uploaded in Firebase.
